ILsung Sun-Super Stenter

Get a Price/Quote

Product Details:

Frequency 50Hz/60Hz
Hook Clip or Pin Type (customizable as per fabric type)
Product Type Textile Machinery
Material Mild Steel, Stainless Steel
Machinery Type Open Width Continuous Textile Finishing Machine
Capacity 800-1800 meters per hour (varies by model)
Voltage 220V/380V/415V (customizable)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

ILsung Sun-Super Stenter Price And Quantity

Minimum Order Quantity 1 Set

ILsung Sun-Super Stenter Product Specifications

Capacity 800-1800 meters per hour (varies by model)
Material Mild Steel, Stainless Steel
Weight Approx. 20,000 kg and above depending on configuration
Machinery Type Open Width Continuous Textile Finishing Machine
Voltage 220V/380V/415V (customizable)
Dimension (L*W*H) Typically 12000mm x 3500mm x 2800mm (varies as per model and options)
Hook Clip or Pin Type (customizable as per fabric type)
Product Type Textile Machinery
Color Blue and white (custom color options available)
Frequency 50Hz/60Hz
Power 45 - 120 kW (depending on number of chambers and configuration)

Optional Accessories Weft Straightener, Auto Lifting Unwinder, Padder, Roto Cleaner
Application Textile Finishing, Heat Setting, Drying, Curing, Shrinkage Control
Exhaust System High efficiency with adjustable airflow
Safety Features Emergency Stop, Overheat Protection, Safety Guards
Heating Method Thermal oil, Gas, Steam or Electric (as per customer requirement)
Width Capacity 1600mm to 3600mm working width
Chain Type Lubricated or Non-Lubricated Chain System
Drive System AC frequency-inverter driven motor
Control System PLC with HMI Touch Screen (automatic and manual options)
Number of Chambers 6 to 12 (modular, expandable)
Speed Range 10 to 120 meters/minute adjustable
Temperature Control Independent Digital Temperature Controller for Each Chamber

Product Description

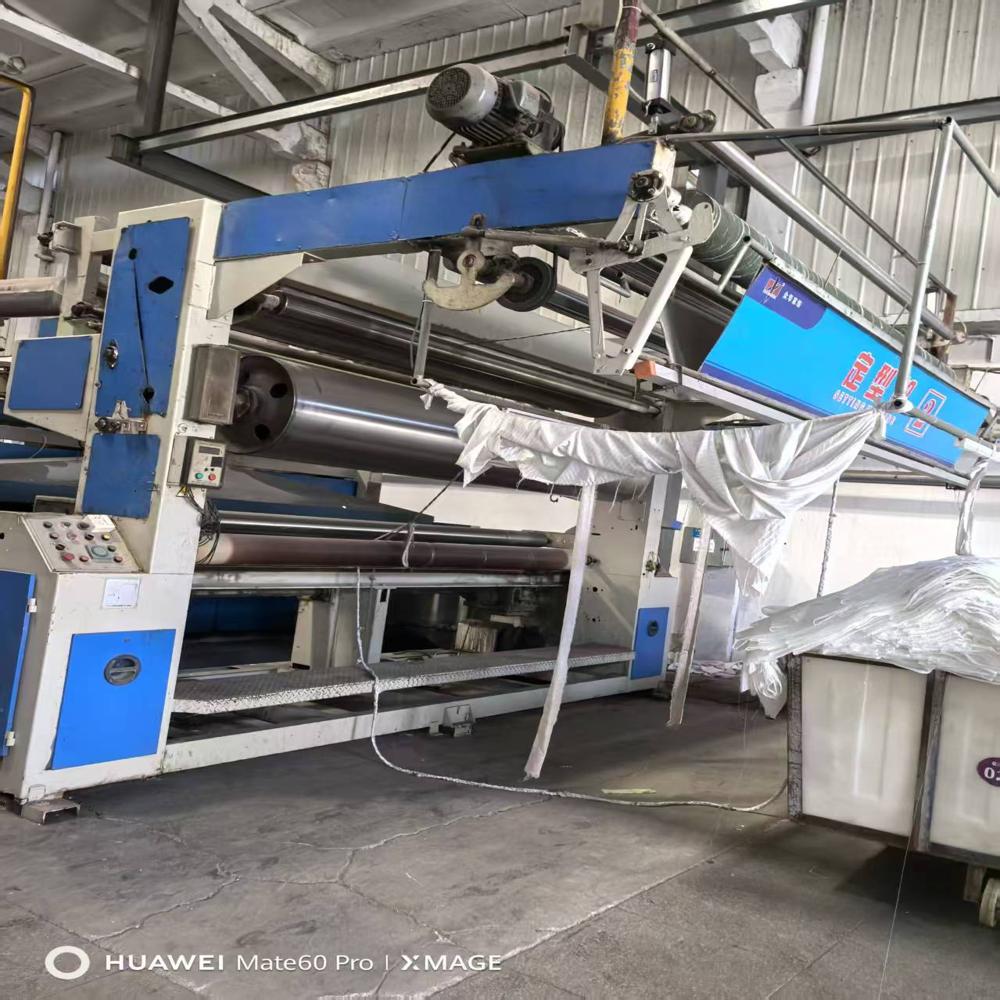

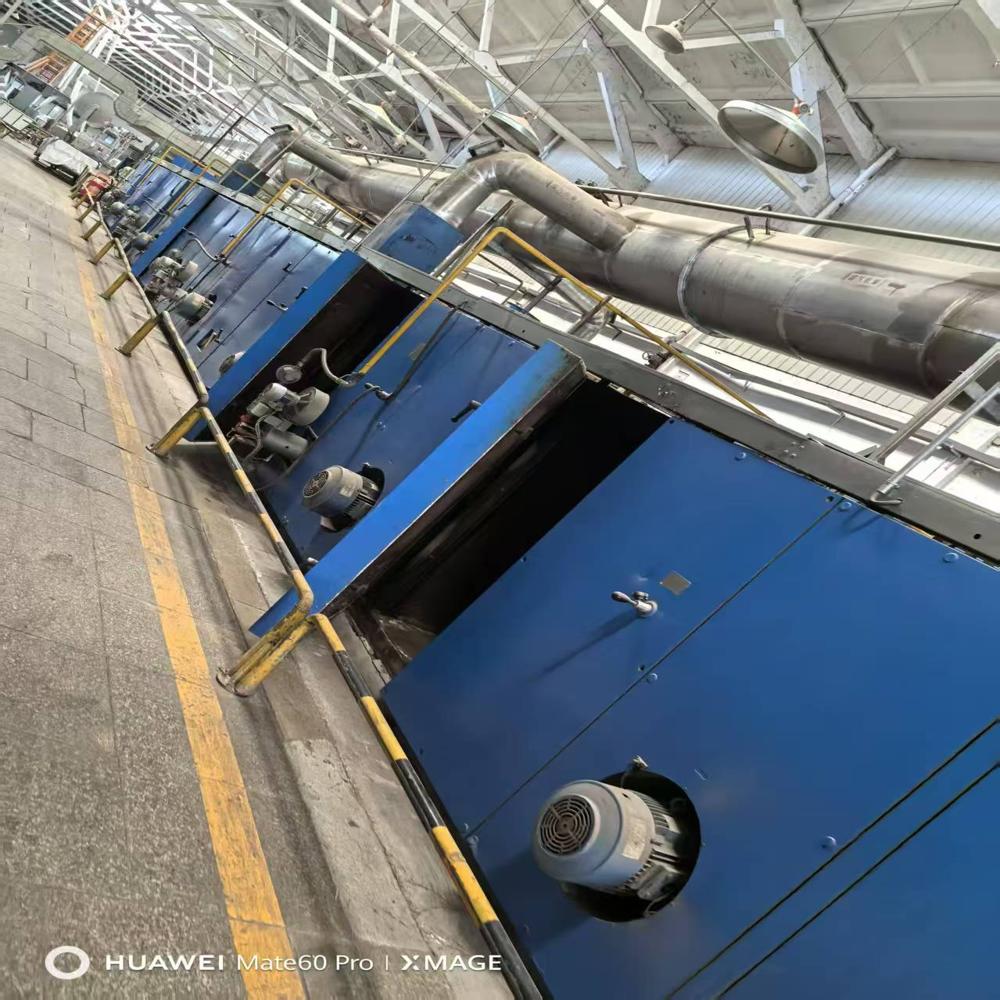

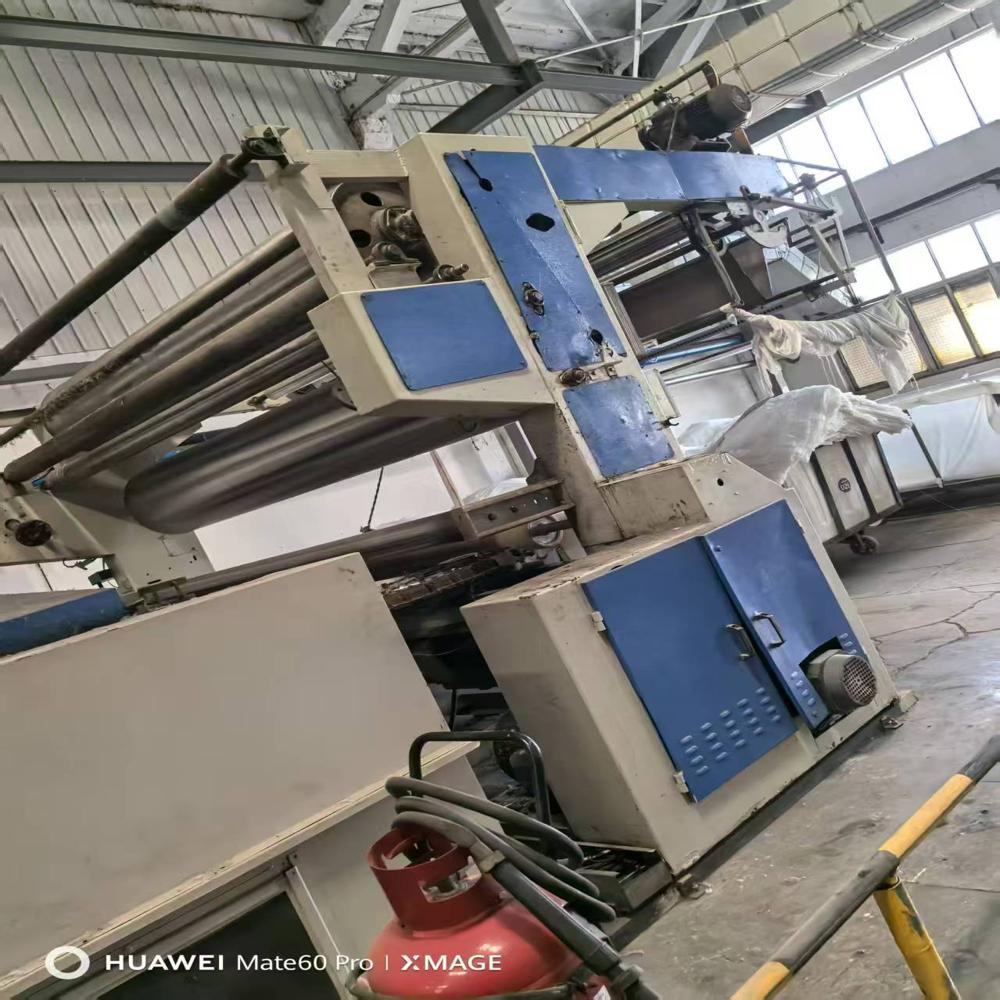

Used Stenter Machine For Sale

Brand Name Ilsung Sun-Super

Year: 2010

Working Width: 3100 mm

Horizontal Pin Chain

South Korea Origin

1 Padder

1 Weft Straightener

11 Chambers

Gas Heated

Wechat or whatsapp

+8613642696524

Superior Flexibility and Modularity

The ILsung Sun-Super Stenter stands out with its modular design, allowing textile companies to expand from 6 to 12 chambers as their production demands grow. Each chamber can be independently controlled for temperature and process variation, adapting effortlessly to diverse finishing requirements. This flexibility maximizes both productivity and operational convenience, ensuring smooth integration into any textile production line.

Advanced Control and Safety Systems

Employing a modern PLC with an intuitive HMI touch screen, this stenter grants operators precision and ease during both manual and automatic operation. It features independent digital temperature controllers for each chamber, ensuring uniform treatment. Safety mechanisms such as emergency stops, overheat protection, and physical guards provide secure and reliable operation in demanding environments.

Customizable for Every Textile Need

From chain types-lubricated or non-lubricated-to exhaust airflow and hook styles, the Sun-Super Stenter's configuration options make it suitable for a wide range of fabrics. Heating methods and optional accessories like weft straighteners and auto unwinder pads further enhance its versatility. Customers can even select machine width, color, and electrical configuration for seamless integration into existing workflows.

FAQ's of ILsung Sun-Super Stenter:

Q: How does the modular chamber system benefit textile production?

A: The modular design allows users to start with as few as 6 chambers and expand up to 12 as production needs grow. Each chamber operates independently, providing flexibility for different processes or fabric types, and maximizing cost-effectiveness by tailoring capacity precisely to requirements.

Q: What are the available heating options and how do I choose the best for my application?

A: You can select from thermal oil, gas, steam, or electric heating systems. The choice depends on your facility's utilities, energy efficiency goals, and fabric treatment needs. Our team can advise on the optimal heating method for your processes during the consultation phase.

Q: When should I use lubricated vs. non-lubricated chain systems?

A: Lubricated chains are suitable for high-speed and heavy-duty applications, ensuring longer life and smoother operation. Non-lubricated chains are preferred for cleaner processes or when finished fabrics must avoid oil contact. Your choice depends on fabric type and processing speed.

Q: Where can this stenter be installed and what are space considerations?

A: The ILsung Sun-Super Stenter can be integrated into most textile finishing facilities. Variable dimensions (starting around 12,000mm x 3,500mm x 2,800mm) require sufficient floor space and access for installation and servicing. Custom widths and configurations allow further adaptation to existing plant layouts.

Q: What control features increase process reliability and ease of use?

A: A PLC with HMI touch screen offers both manual and automatic controls, enabling fast recipe changes and precise management. Each chamber's independent digital temperature controller enhances processing accuracy, while automated systems reduce operator error and boost efficiency.

Q: How does the exhaust and airflow system improve finishing results?

A: The high-efficiency exhaust system with adjustable airflow guarantees proper removal of moisture and volatile substances, creating optimal drying and heat-setting environments. This preserves fabric quality and promotes uniform treatment throughout the operation.

Q: What are the benefits of the optional accessories like weft straightener and auto unwinder?

A: Optional accessories such as weft straighteners ensure perfect fabric alignment, while auto lifting unwinders and padders enhance workflow automation. The roto cleaner and other add-ons further optimize cleanliness and fabric finish, ultimately improving product quality and process efficiency.
